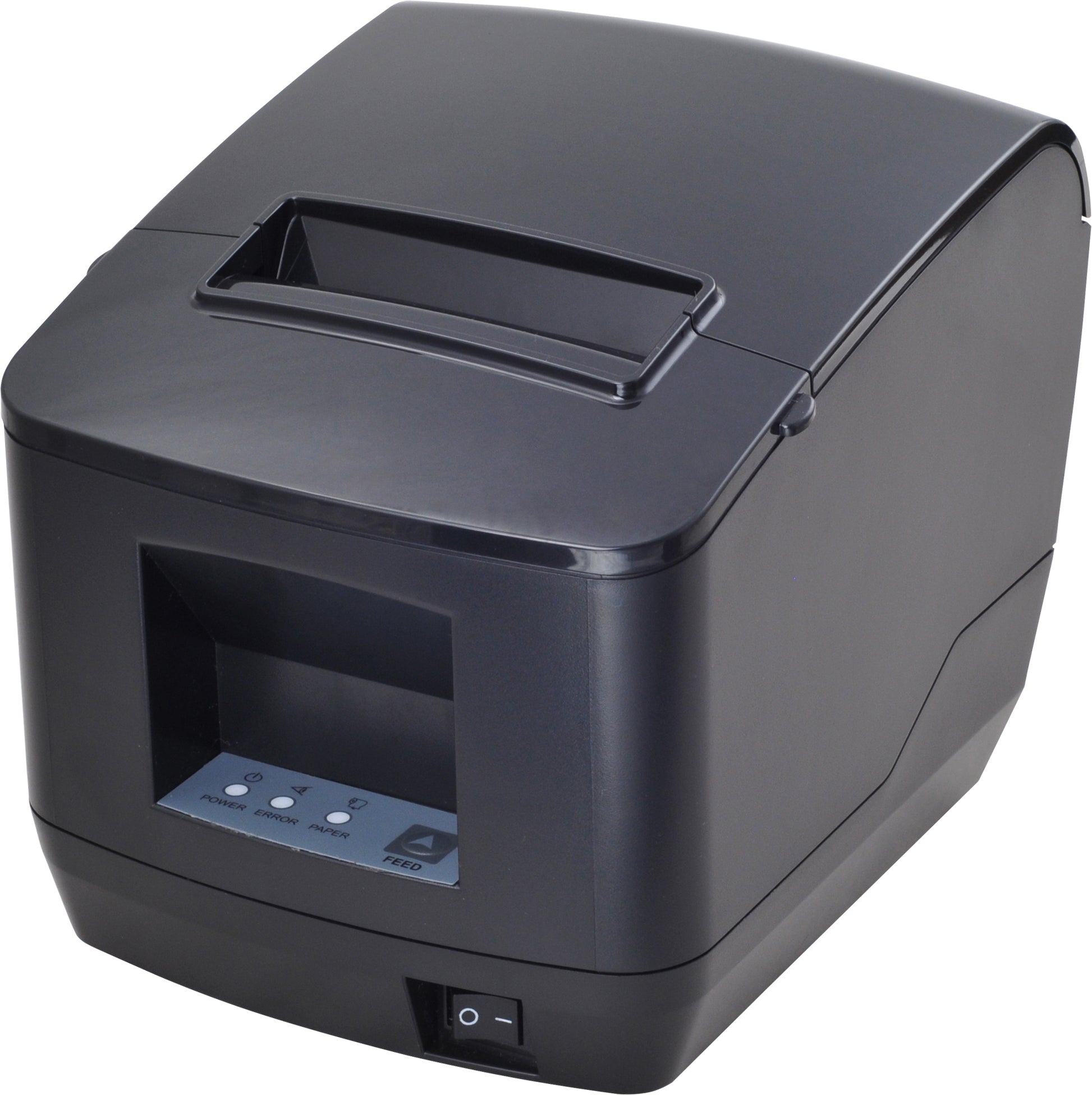

80mm Thermal Receipt Printer with USB LAN Port for Restaurant Receipt and Kitchen Printing ESC/POS Support Linux Windows
Product Specification
Printing method: Direct thermal
Paper width: 79.5±0.5mm
Print width: 72mm/ 76mm/ 80mm/ 64mm/ 48mm/ 52mm
Column capacity: 576 dots/line(adjustable by command)
Printing speed: 260 mm/s Max.

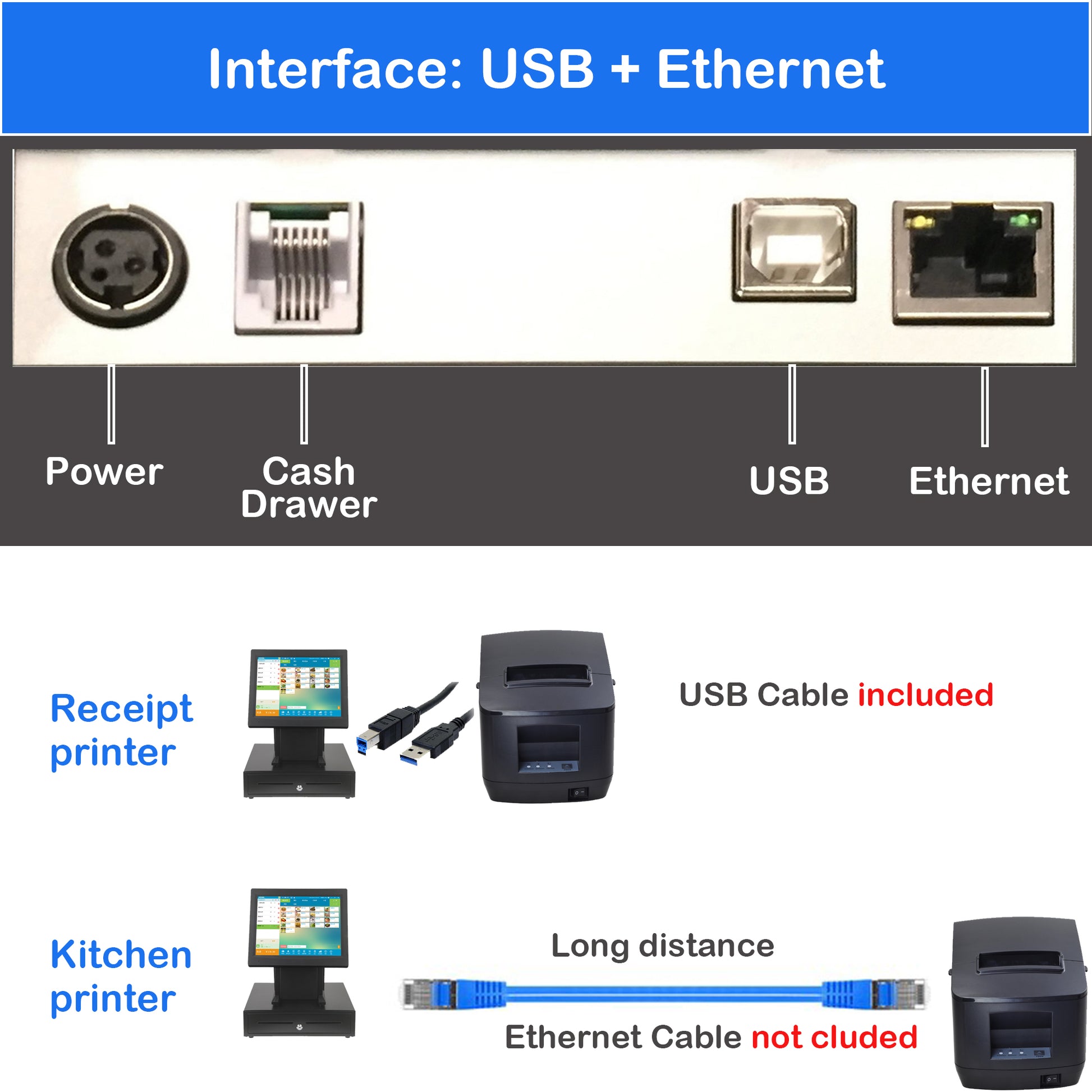

Interface: USB+Lan
Line spacing: 3.75mm (Adjustable by commands)
Column number 80mm paper: Font A - 42 or 48 columns/Font B - 56 or 64 columns/ Chinese, traditional Chinese - 21 or 24 columns
Character size ANK, Font A:1.5×3.0mm(12×24 dots) Font B:1.1×2.1mm(9×17 dots) Chinese, traditional Chinese:3.0×3.0mm(24×24 dots)
Auto-cutter: Partial
Extension character sheet: PC347(Standard Europe)、Katakana、PC850(Multilingual)、PC860(Portuguese)、PC863(Canadian-French)、PC865(Nordic)、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866(Cyrillic#2)、PC852(Latin2)、PC858、IranII、Latvian、Arabic、PT151(1251)
Barcode types: UPC-A/UPC-E/JAN13(EAN13)/JAN8 EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128
2D Barcode: QR Code / PDF417
Input buffer: 128 Kbytes
NV Flash: 256 Kbytes
Power adaptor: Input AC 100-240V, 50~60Hz
Output DC 24V/2.5A
Printer input: DC 24V/2.5A
Cash drawer: DC 24V/1A
Weight: 1.0 Kg

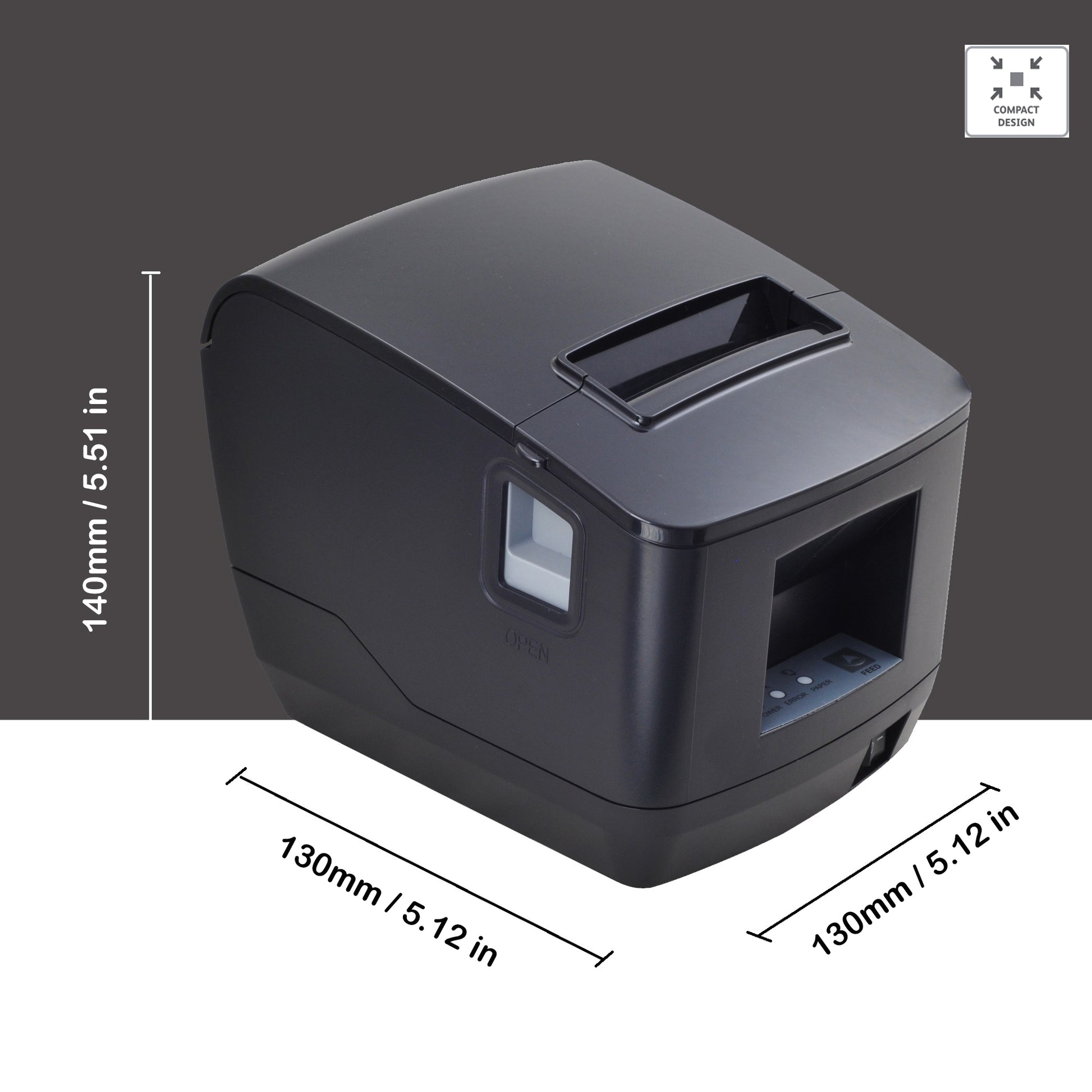

Dimensions: 183.3 ×140×141.5 mm (D×W×H)
Operation environment: Temperature 0~45 °C humidity: RH 10~80%
Storage environment: Temperature -10~60℃ humidity: RH 10~90%
Cutter life: 1.5 million cuts
Printer head life: 150 KM
Emulation: ESC/POS
Driver: Windows/JPOS/OPOS/Linux/Android/Mac
Utility: Windows & Linux test Utility
SDK: iOS/Android/Windows
