Desktop Barcode Scanner 1D 2D QR Code USB Laser Counter Top POS Bar code Reader
USB Desktop Laser Barcode Scanner 1D / 2D QR Code
The desktop barcode scanner has an omnidirectional scan pattern. It has a patented single circuit board construction for maximum durability and an industry-leading working range of 13 mils 100% UPC bar codes from 0 in. to over 10.3 in. This scanner support all major 1D and 2D QR barcode.
This barcode scanner uses an imager image sensor that delivers excellent scanning performance with superior scanning speed and a wide data capture range. It provides superior motion and angular tolerance so that codes can be captured faster, and there is no need to pause during scans.
Desktop Hand-Free design freezes your hand and improves working efficiency.
Plug and play, no need for any driver or software. Easy installation with USB cable.
Extra-large scanning angle, identify screen code, incomplete code, and fuzzy code easily.
Super decoding ability, fast to scan both printed and mobile phone screen 1D/2D barcodes.
Auto sense, when the scanner reaches the barcode, it will automatically be decoding the barcode.
Application fields: Supermarket, Retail, Warehouse, logistics, Library, Medical, etc.

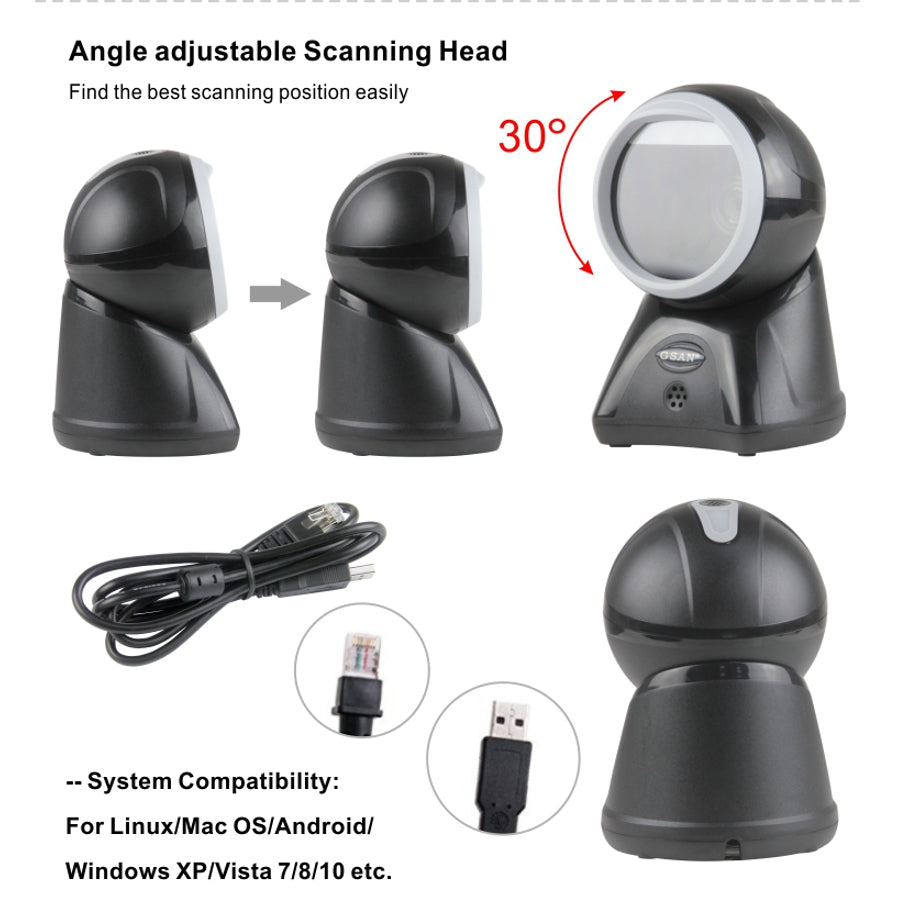

Compatible System – Windows, Mac OS, Cash Register, Linux.
Image Sensor: 640 x 480 CMOS Red
Illumination: LED 650+- 10nm
Read Rate: 200 scans/sec
Resolution: >= 50.102mm/4mils
Reading angle: Crimp: 0 ~ 360; Slope: +/- 60; Distortion degree: +/- 60
Bit Error Rate: 1/800 million
Voltage: 5V DC
Current: 300mA (Max.); 40mA (sleep)
Scanning speed: 2200 times/s
Scanning angle: rotate Roll:0-360 degree, tilt pitch: ?65 degrees, deflect SKEW: ?65 degrees
Sweeping barcode type: paper, thin-film medium one-dimensional; mobile phone, flat screen, etc.
Printing contrast: 20%
Error rate: ≤1/2,000,000
Interface type: USB: HID Keyboard (default mode), USB virtual serial port
IP level: up to IP54 standard
Trigger Mode: Handheld, Continuous, Auto-Induction
Prompt mode: Buzzer, LED
Scanner Dimension: 4.3" x 2.1" x 4.7" (110mm x 53mm x 120mm)
1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Coda bar, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Data bar, etc.
2D: PDF417, QR Code (Model 1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140)
Depth of field:
UPC-A (13mil) 0mm ~ 150mm
Code 39 (20mil) 50mm ~ 340mm
PDF 417 (6mil) 0mm ~80mm
PDF 417 (15mil) 0mm ~ 200mm
PDF 417 (10mil) 0mm ~ 130mm
Data Matrix (24mil) 0mm ~210mm
1 x Barcode Scanner
1 x USB Cable
1 x Manual
