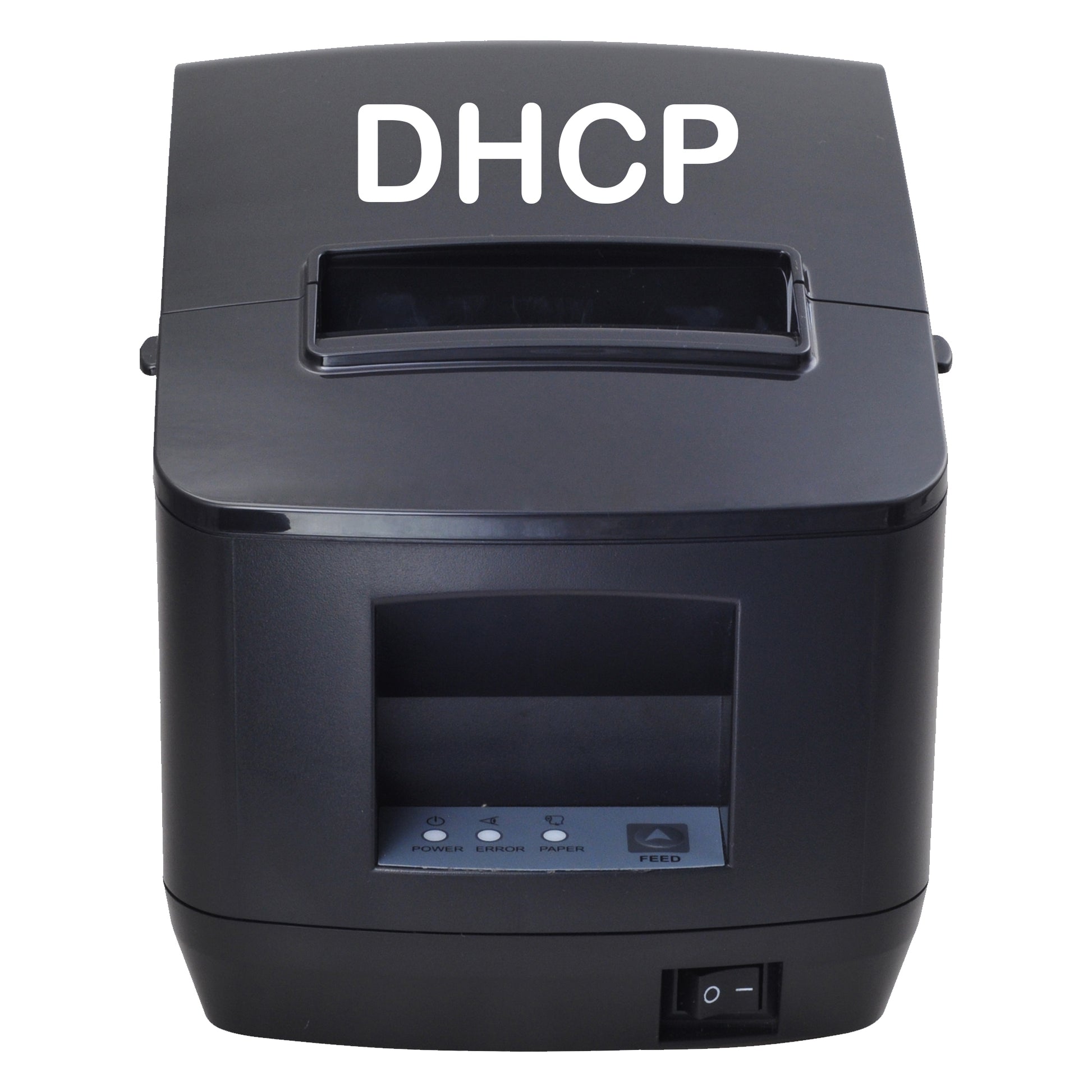

"DHCP" 80mm Thermal Receipt Printer with USB LAN Port for Restaurant Receipt and Kitchen Printing ESC/POS Support Linux Windows

  • $189.00
    Unit price per
Shipping calculated at checkout.


Product Specification

Printing method:  Direct thermal

Paper width:  79.5±0.5mm

Print width:  72mm/ 76mm/ 80mm/ 64mm/ 48mm/ 52mm

Column capacity:  576 dots/line(adjustable by command)

Printing speed:  260 mm/s Max.

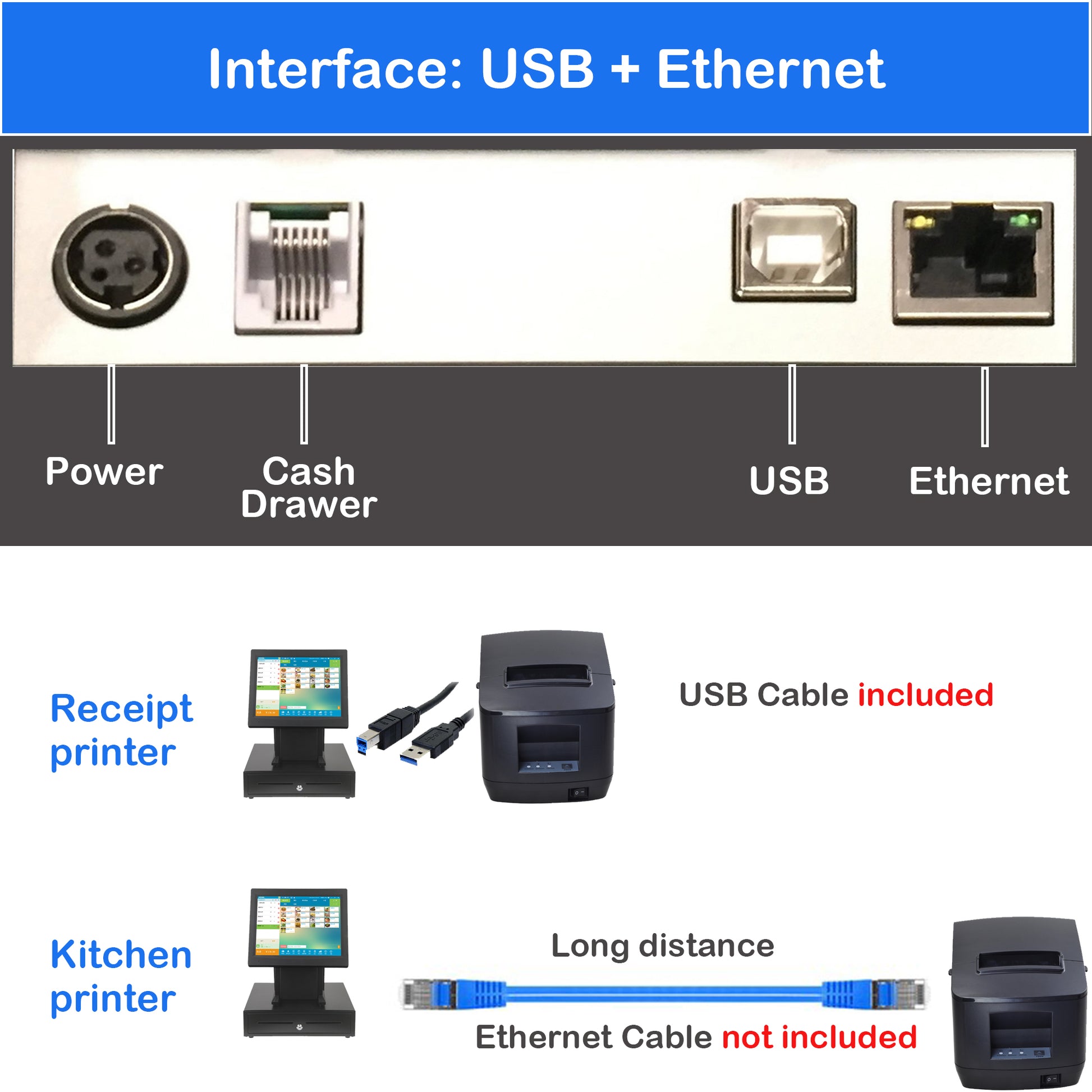

Interface:  USB+Lan (DHCP)

Line spacing:  3.75mm (Adjustable by commands)

Column number  80mm paper: Font A - 42 or 48 columns/Font B - 56                                       or 64 columns/ Chinese, traditional Chinese - 21 or 24 columns

Character size  ANK, Font A:1.5×3.0mm(12×24 dots) Font B:1.1×2.1mm(9×17 dots) Chinese, traditional Chinese:3.0×3.0mm(24×24 dots)

Auto-cutter:  Partial

Extension character sheet:  PC347(Standard Europe)、Katakana、PC850(Multilingual)、PC860(Portuguese)、PC863(Canadian-French)、PC865(Nordic)、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866(Cyrillic#2)、PC852(Latin2)、PC858、IranII、Latvian、Arabic、PT151(1251)

Barcode types:  UPC-A/UPC-E/JAN13(EAN13)/JAN8 EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128

2D Barcode:  QR Code / PDF417

Input buffer:  128 Kbytes

NV Flash:  256 Kbytes

Power adaptor:  Input AC 100-240V, 50~60Hz

                             Output DC 24V/2.5A

Printer input:  DC 24V/2.5A

Cash drawer:  DC 24V/1A

Weight:  1.0 Kg

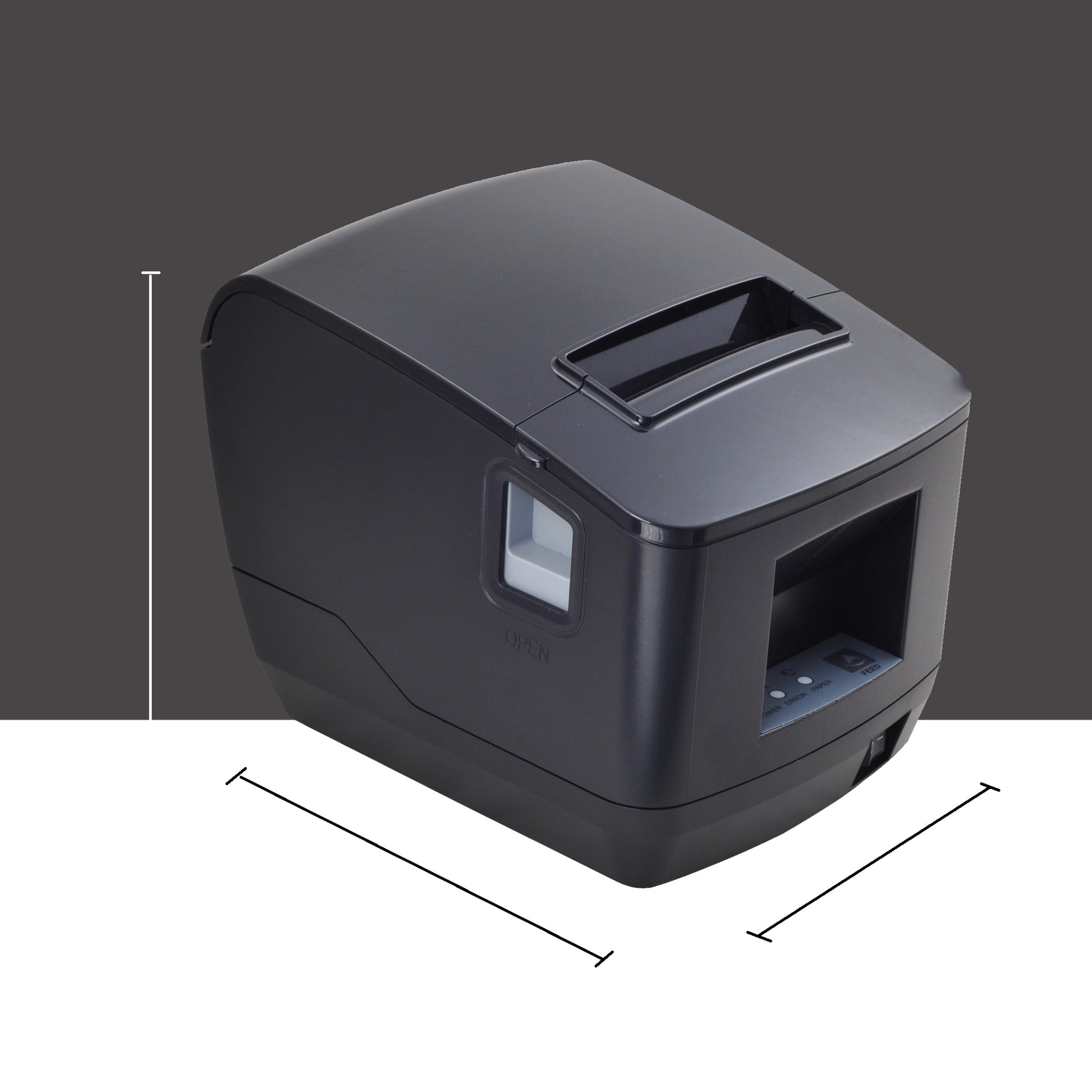

Dimensions:  183.3 ×140×141.5 mm (D×W×H)

Operation environment:  Temperature 0~45 °C  humidity: RH 10~80%

Storage environment:  Temperature -10~60℃ humidity: RH 10~90%

Cutter life:  1.5 million cuts

Printer head life:  150 KM

Emulation:  ESC/POS

Driver:  Windows/JPOS/OPOS/Linux/Android/Mac

Utility:  Windows & Linux test Utility

SDK:  iOS/Android/Windows
