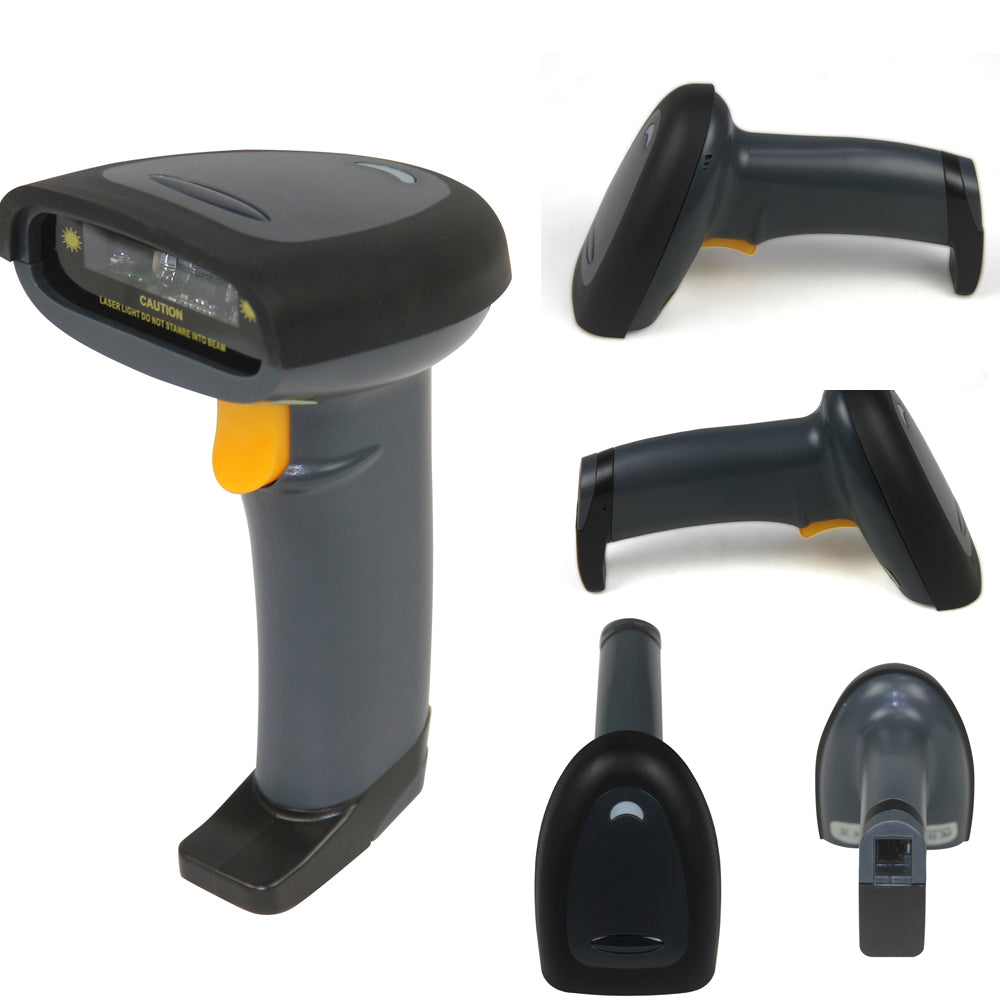

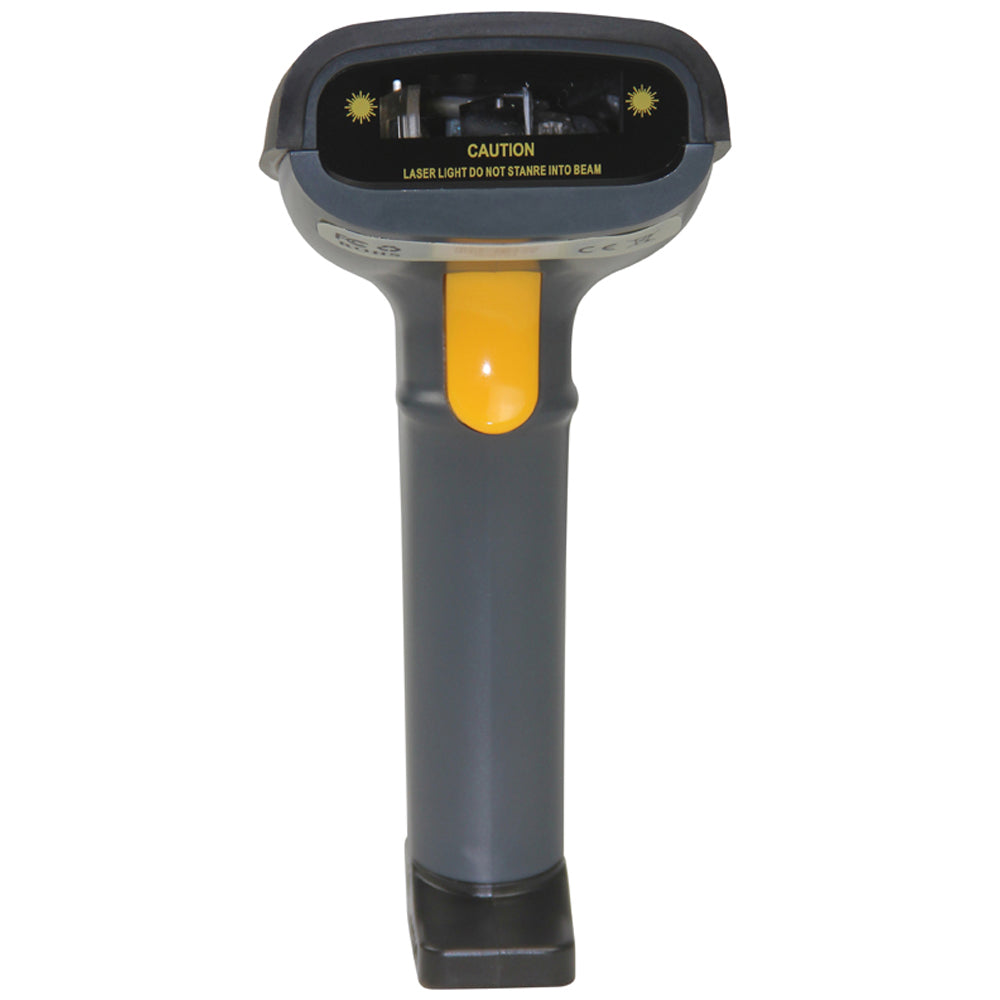

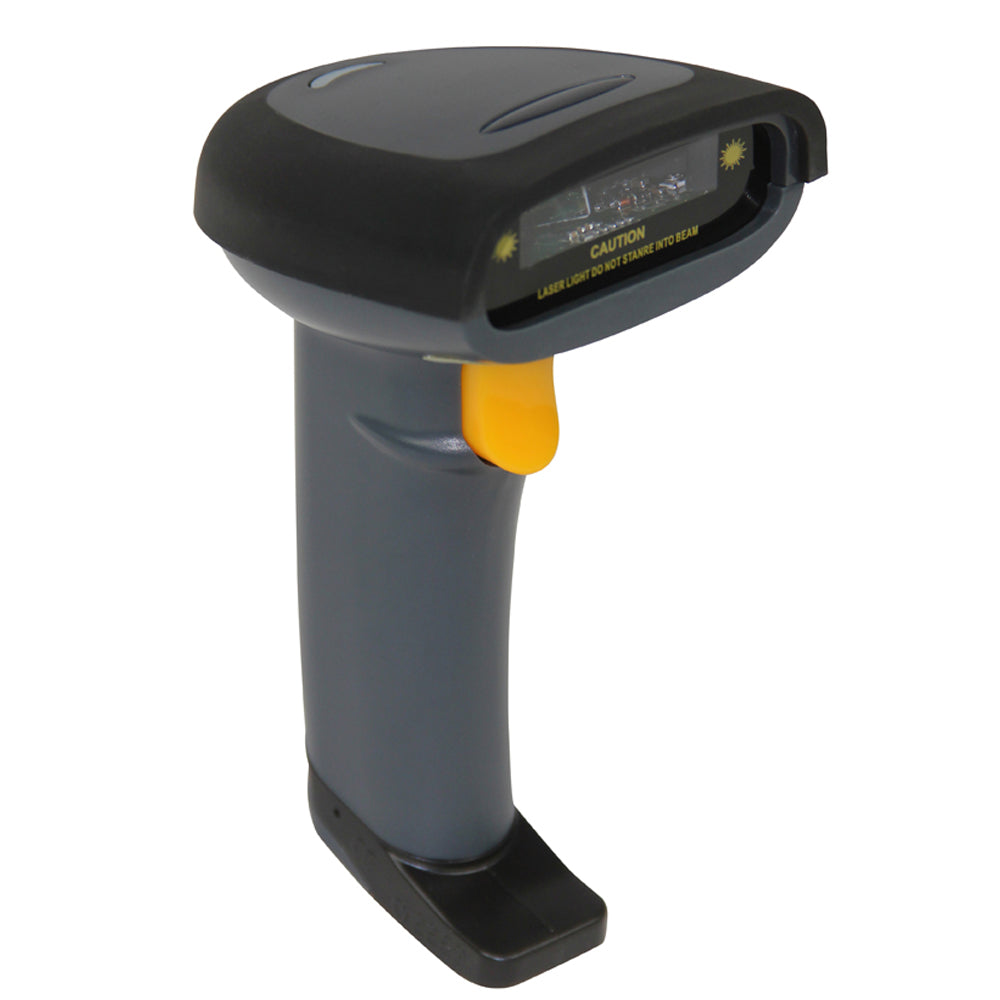

Laser Bar code Scanner

  • $89.99
    Unit price per
Shipping calculated at checkout.


Light Source: Visible (650 ~ 670mm)

Scan Rate: 100 times/sec

Resolution: 0.1 ~ 0.825mm

Scan Distance: 10 ~ 820mm

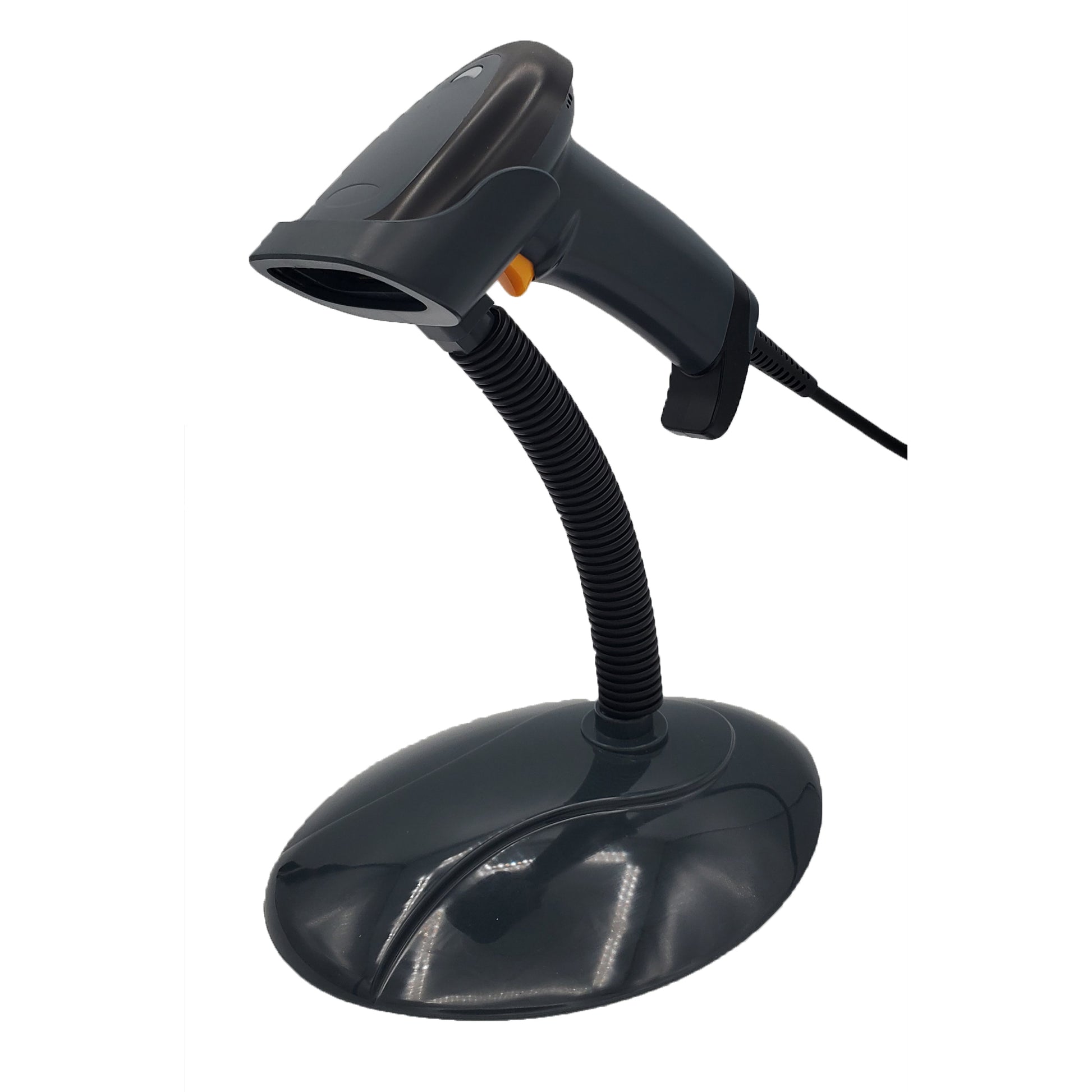

Use Method: Hand-held or Hands-free

Scan Touch-off Method: Controlled by hand or scan automatically

Decode Capability:  All 1 Dimension Bar code Labels like UPC-A, UPC-E, EAN8, EAN 13, EAN 128, Industrial 2 of 5, Code 128, Code 39, Code 93, Coda bar 125, and so on.

Mistake Rate: 1/3 Million

Interface: USB

Reading Width: 60mm width at 30mm (distance), 98mm at 100mm (distance)

Depth of Field: 10 ~ 450mm (pcs 0.9, density 0.25)

Read Elevation: 60

Read Obliquity: 45

Safety: CORH Class 1 laser product

Operating Temperature: -20 ~ 45 Celsius Degree

Storage Temperature: -20 ~ 45 Celsius Degree

Operating Humidity: 5% ~ 85%

Storage Humidity: 5% ~ 85%

Voltage Requirement: 5V

Working Current: 120mA

Dimension (W x D x H): 166 x 66 x 86 mm

Material: ABS + Rubber

Weight: N.W. 158g (without Cable)
